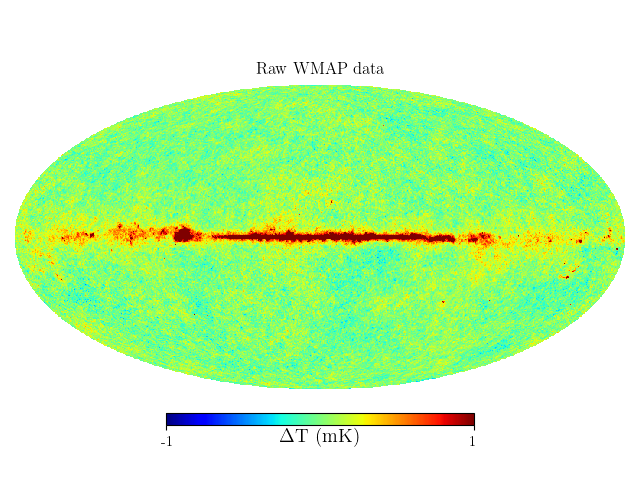

WMAP plotting with HEALPix¶
This example uses the astromL.datasets.fetch_wmap_temperatures()
functionality to download and plot the raw WMAP 7-year data. The
visualization requires the healpy
package to be installed.
________________________________________________________________________________
plot_wmap_raw.py is not compiling:
________________________________________________________________________________
# Author: Jake VanderPlas <vanderplas@astro.washington.edu>
# License: BSD
# The figure is an example from astroML: see http://astroML.github.com
import numpy as np
from matplotlib import pyplot as plt
# warning: due to a bug in healpy, importing it before pylab can cause
# a segmentation fault in some circumstances.
import healpy as hp
from astroML.datasets import fetch_wmap_temperatures
#------------------------------------------------------------
# Fetch the wmap data
wmap_unmasked = fetch_wmap_temperatures(masked=False)
#------------------------------------------------------------
# plot the unmasked map
fig = plt.figure(1)
hp.mollview(wmap_unmasked, min=-1, max=1, title='Raw WMAP data',
fig=1, cmap=plt.cm.jet, unit=r'$\Delta$T (mK)')
plt.show()
